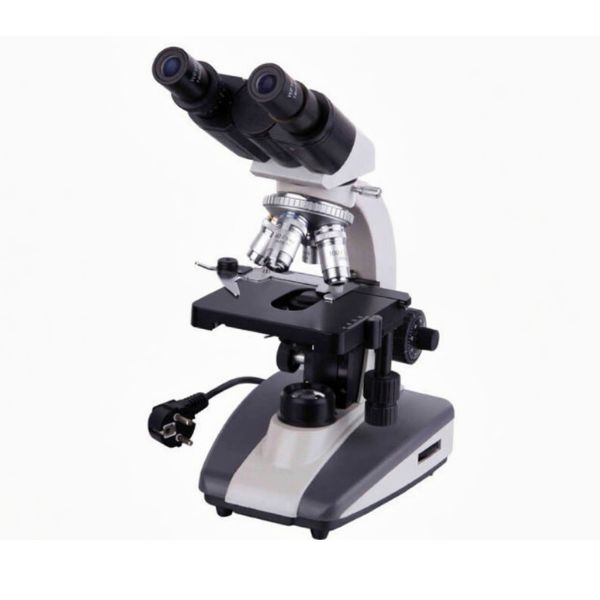

The 136 Biological Educational Binocular College Student Microscope is designed for colleges, schools, laboratories, and educational research applications. It offers clear optical performance, durable construction, and smooth mechanical operation, making it suitable for biological observation, pathology studies, microbiology, and routine laboratory work.
This microscope is equipped with achromatic objectives and wide-field eyepieces to provide sharp and accurate imaging. The compensation-free binocular viewing head ensures comfortable long-term observation, while the double-layer mechanical stage allows precise slide movement during examination.
The microscope features coaxial coarse and fine focusing adjustment with high precision focusing control for accurate specimen observation. An Abbe condenser with iris diaphragm improves illumination and image contrast, making it ideal for educational and laboratory environments.
The halogen illumination system provides bright and stable lighting for clear specimen visualization.
Features
- Compensation-free binocular viewing head inclined at 30°
- 360° rotatable viewing head
- Wide field WF10× eyepiece
- Achromatic objectives for sharp imaging
- Double-layer mechanical stage
- Precision coaxial coarse and fine focusing system
- Abbe condenser with iris diaphragm and filter
- Bright halogen illumination system
- Suitable for colleges, laboratories, and educational institutes
Technical Specifications
| Parameter | Specification |
| Model | 136 |
| Viewing Head | Compensation Free Binocular Head, Inclined at 30° (55mm–75mm) |
| Eyepiece | WF10× / 18mm |
| Objectives | Achromatic 4×, 10×, 40×(S), 100×(S) Oil |
| Stage Type | Double Layers Mechanical Stage |
| Stage Size | 110mm × 126mm |
| Moving Range | 70mm × 30mm |
| Condenser | N.A. 1.25 Abbe Condenser with Iris Diaphragm and Filter |
| Focusing | Coaxial Coarse & Fine Focusing Adjustment |
| Fine Focusing Scale | 0.002mm |
| Focusing Range | 30mm |
| Light Source | Halogen Bulb 6V/20W |
| Power Supply | AC 220V / 110V |
Optional Accessories
- WF16× Eyepiece
- WF20× Eyepiece
- P16× Eyepiece
- 20× Objective
- 60×(S) Objective
- CCD Adapter
- Compensation Free Binocular & Trinocular Head (48mm–75mm)
Applications
- Educational laboratories
- College biology labs
- Medical and pathology studies
- Microbiology observation
- Research laboratories
- Routine specimen analysis
