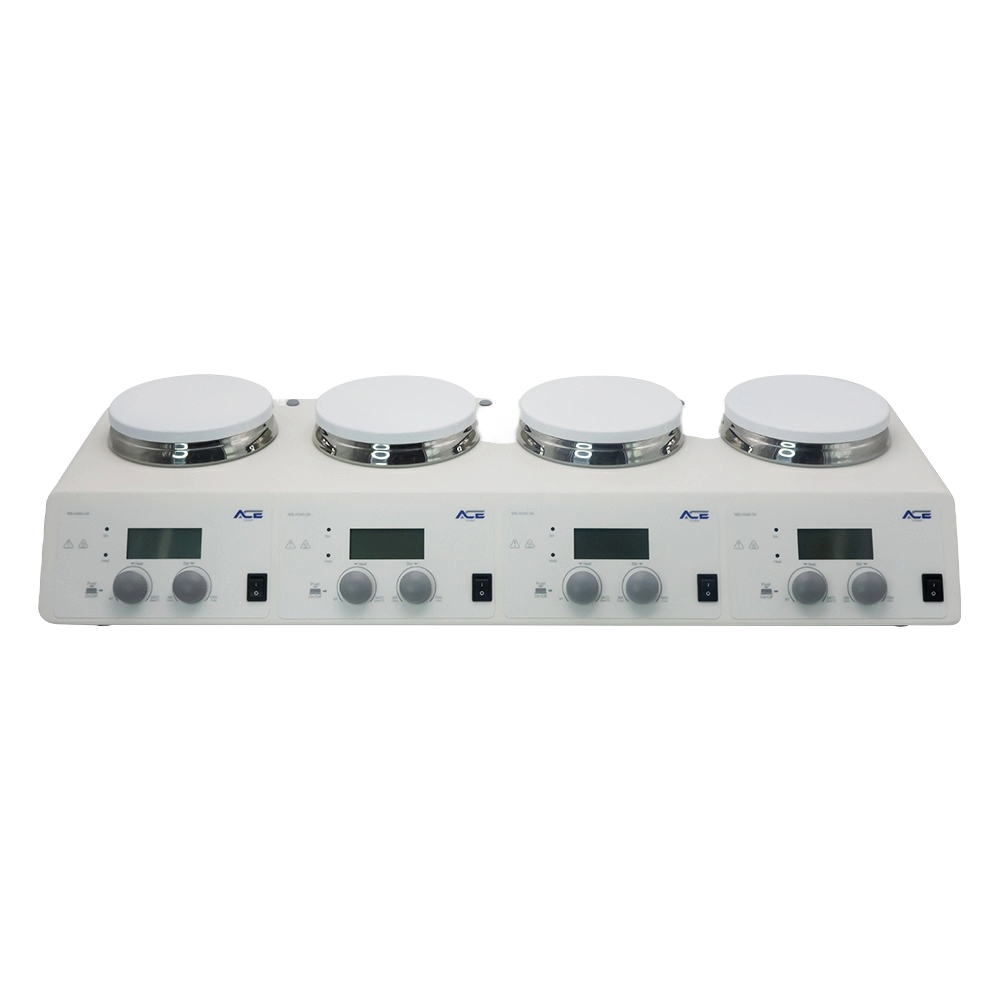

The MS-H340-S4 4-Position Magnetic Hotplate Stirrer is designed for simultaneous heating and stirring of multiple samples in laboratories. Each position operates with independent heating and stirring control, allowing researchers to run multiple experiments efficiently at the same time. The system is widely used in chemical synthesis, physical and chemical analysis, and biopharmaceutical laboratories.
The hotplate features an LCD display that shows real-time temperature and stirring speed, ensuring precise monitoring of experimental conditions. A PID temperature controller provides accurate and stable heating with a maximum temperature of 340°C, while the PT1000 external temperature sensor delivers high measurement accuracy of ±0.2°C.
Equipped with a brushless DC motor, the stirrer operates quietly, requires minimal maintenance, and offers stable speed control from 200 to 1500 rpm. The stainless steel work plate with ceramic coating provides excellent chemical resistance and durability, making it suitable for demanding laboratory environments.
For safety, the unit includes overheating protection up to 420°C and supports a variety of accessories for different laboratory applications. With four independent stirring positions and a compact design, the MS-H340-S4 is an ideal solution for research laboratories, universities, pharmaceutical labs, and industrial testing facilities.
Key Features
- Independent heating and stirring control for each position
- LCD display showing real-time temperature and stirring speed
- PID temperature control for stable heating up to 340°C
- Brushless DC motor for quiet, reliable, maintenance-free operation
- External PT1000 temperature sensor with ±0.2°C accuracy
- Overheating protection at 420°C for safe operation
- Stainless steel work plate with ceramic coating for chemical resistance
- Supports multiple accessories for versatile laboratory applications
Applications
- Chemical synthesis laboratories
- Physical and chemical analysis
- Pharmaceutical and biotechnology research
- Academic and industrial laboratories
Technical Specifications
Model: MS-H340-S4
- Work Plate Dimension: Ø135 mm (5 inch) × 4
- Plate Material: Stainless Steel with Ceramic Coating
- Motor Type: Brushless DC Motor
- Stirring Positions: 4
- Maximum Magnetic Stir Bar Length: 40 mm
- Speed Range: 200 – 1500 rpm
- Speed Display: LCD
- Temperature Display: LCD
- Sensor Control Accuracy: ±20 rpm
- Temperature Range: 25 – 340°C
- Over-Temperature Protection: 420°C
- Temperature Display Accuracy: ±0.1°C
- External Temperature Sensor: PT1000 (Accuracy ±0.2°C)
- IP Protection Class: IP20
- Motor Input Power: 1.8 W × 4
- Power: 515 W × 4
- Heating Power: 500 W × 4
- Voltage / Frequency: 100-120V, 60Hz / 200-240V, 50Hz
- Dimensions (W × D × H): 698 × 270 × 128 mm
- Weight: 9.5 kg
- Permissible Ambient Temperature: 5 – 40°C
- Permissible Relative Humidity: 80% RH
