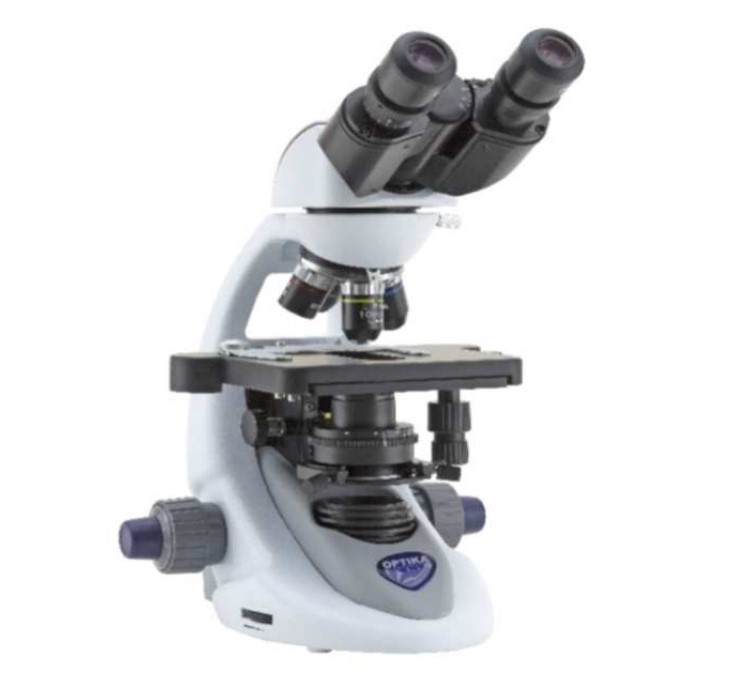

The B-292 Binocular Brightfield Microscope is a professional upright laboratory microscope designed for educational, clinical, research, and routine laboratory applications. Built with a durable aluminum die-cast body and ergonomic binocular observation system, the microscope delivers excellent optical performance, user comfort, and long-term reliability.
Equipped with premium N-PLAN objectives, the B-292 provides sharp, high-contrast images with magnification ranging from 40x to 1000x. The anti-fungus treated optical system ensures dependable performance even in humid laboratory environments.
The microscope features a binocular Siedentopf viewing head inclined at 30° and fully rotatable 360° for comfortable observation during extended laboratory sessions. Its quadruple reversed nosepiece mounted on ball bearings allows smooth and precise objective rotation.
The rackless double-layer mechanical stage provides accurate specimen positioning with smooth X-Y movement controls, while the coaxial coarse and fine focusing system ensures precise focusing adjustments.
The advanced X-LED3 illumination system delivers bright white light with low power consumption and a lifetime exceeding 65,000 hours. Optional darkfield and polarized light accessories expand the microscope’s versatility for advanced laboratory applications.
The B-292 is ideal for laboratories, educational institutes, pathology labs, hospitals, universities, and research facilities requiring reliable brightfield microscopy.
Features
- Professional binocular brightfield microscope
- Magnification range 40x–1000x
- Premium N-PLAN objectives
- Binocular Siedentopf head
- 30° inclined and 360° rotatable head
- Quadruple reversed nosepiece
- Rackless double-layer mechanical stage
- X-LED3 illumination system
- Coaxial coarse and fine focusing
- Anti-fungus treated optics
- Optional darkfield observation
- Optional polarized light observation
- Durable aluminum die-cast construction
Specifications
Optical System
| Parameter | Specification |
| Observation Method | Brightfield |
| Optional Observation | Darkfield, Simple Polarized Light |
| Microscope Type | Upright |
| Optical System | 160 mm |
| Standard Magnification | 40x – 1000x |
| Head Type | Binocular Siedentopf |
| Head Inclination | 30° |
| Head Rotation | 360° |
| Interpupillary Distance | 48 – 75 mm |
| Dioptric Adjustment | Left Tube |
| Eyepieces | WF 10x/20 mm |
| High Eyepoint | Yes |
| Rubber Eyecups | Yes |
| Objective Thread | RMS |
| Parfocal Distance | 45 mm |
| Nosepiece | Quadruple Reversed |
| Nosepiece Rotation | Ball Bearings |
Objectives
| Objective | Numerical Aperture | Working Distance |
| N-PLAN 4x | 0.10 | 15.2 mm |
| N-PLAN 10x | 0.25 | 5.5 mm |
| N-PLAN 40x | 0.65 | 0.45 mm |
| N-PLAN 100x Oil/Water | 1.25 | 0.13 mm |
All objectives include anti-fungus treatment.
Stage & Focusing
| Parameter | Specification |
| Stage Type | Double Layer Rackless |
| Stage Dimensions | 150 x 139 mm |
| Moving Range | 75 x 33 mm |
| Stage Material | Anti-scratch Painting |
| Slide Capacity | 1 Slide |
| X-Y Vernier Scale | Yes |
| Vernier Accuracy | 0.1 mm |
| Focus Type | Coaxial Coarse & Fine |
| Coarse Total Travel | 18 mm |
| Fine Total Travel | 0.4 mm |
| Fine Graduations | 100 |
| Fine Resolution | 4 µm |
| Adjustable Tension | Yes |
| Upper Stop Protection | Yes |
Condenser
| Parameter | Specification |
| Condenser Type | Abbe |
| Numerical Aperture | 1.25 |
| Diaphragm | Iris |
| Centerable | Yes |
| Focusable | Rack and Pinion |
| Removable | Yes |
Illumination System
| Parameter | Specification |
| Illumination Type | X-LED3 |
| LED Power | 3.6 W |
| Brightness Control | Manual |
| LED Lifetime | >65,000 hours |
| Color Temperature | 6300 K |
| Maximum Power Consumption | 6 W |
| Illumination Type | External |
| Microscope Connector | Jack 2.1 mm |
| Power Plug | EU / UK / US Multi-plug |
| Input Voltage | 100/240 Vac, 50/60 Hz |
| Output Voltage | 6 Vdc 2.5 A |
Dimensions & Weight
| Parameter | Specification |
| Height | 370 mm |
| Width | 235 mm |
| Depth | 320 mm |
| Weight | 6.5 kg |
Standard Accessories
- Dust Cover
- Immersion Oil (10 ml)
- Tension Adjustment Tool
- Digital User Manual
Optional Accessories
- Darkfield Accessories
- Polarized Light Accessories
- Pointer Eyepiece
- Micrometric Scale
- Mirror for Transmitted Light
- External Rechargeable Battery Pack
Applications
- Educational Laboratories
- Universities & Colleges
- Clinical Laboratories
- Pathology Laboratories
- Medical Research
- Biological Research
- Routine Laboratory Observation
