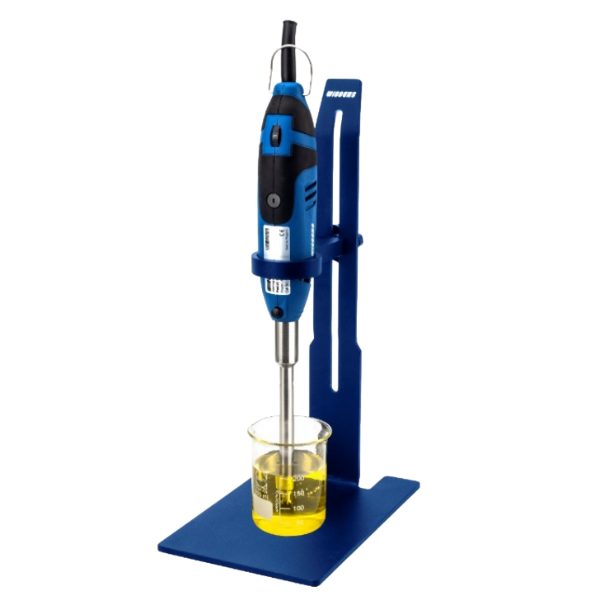

The D-130 Handheld Homogenizer is a compact and powerful laboratory homogenizing instrument designed for mixing, emulsifying, dispersing, chopping, and tissue sample preparation. Its lightweight ergonomic design allows comfortable one-hand operation, making it ideal for laboratories handling small-volume samples in research, pharmaceutical, biological, medical, and chemical applications.
Equipped with a high-speed motor operating from 8,000 to 30,000 rpm, the D-130 provides fast and efficient homogenization performance for liquids, tissues, and solid sample dispersion. The autoclavable stainless steel shafts made from high-grade 316L stainless steel offer excellent chemical resistance and compatibility with aggressive solutions.
The interchangeable shaft system allows quick removal and easy cleaning, making the D-130 highly convenient for routine laboratory workflows. Multiple optional working heads are available for processing different sample volumes with precision and efficiency.
Product Features
- Suitable for mixing, emulsifying, dispersing, and chopping
- Ideal for small sample processing applications
- Lightweight handheld design for one-hand operation
- High-speed motor with adjustable speed control
- Speed range from 8,000 to 30,000 rpm
- Autoclavable SS 316L stainless steel shafts
- Resistant to aggressive chemical solutions
- Interchangeable shafts for easy cleaning and maintenance
- Compact and user-friendly laboratory homogenizer
- Suitable for biological, pharmaceutical, and research applications
Applications
- General homogenization and emulsification
- Tumor tissue homogenization for disease research
- Cell disruption and RNA/DNA isolation
- Pharmaceutical sample preparation
- Dissolving pills and tablets for quality control
- Dispersion of plant, animal, and human tissue samples
- Dissolving and mixing solid materials
- Laboratory sample preparation
Technical Specifications
- Model: D-130
- Speed Range (No Load): 8,000 – 30,000 rpm
- Process Volume:
- 0.1 – 50 mL (with Ø5 mm shaft)
- 1 – 250 mL (with Ø10 mm shaft)
- Input / Output Power: 130W
- Contact Material: SS 316L Stainless Steel
- Optional Working Heads:
- Ø5 mm × L90 mm (0.1 – 50 mL)
- Ø10 mm × L150 mm (1 – 250 mL)
- Order No.: 1710130
Available Accessories
| Model | Length | Rotor Diameter | Volume Range |
| DS-130/5 | 90 mm | 5 mm | 0.1 – 50 mL |
| DS-130/7 | 160 mm | 7 mm | 0.3 – 50 mL |
| DS-130/10 | 150 mm | 10 mm | 1 – 250 mL |
| DS-130/14 | 170 mm | 14 mm | 2 – 250 mL |
