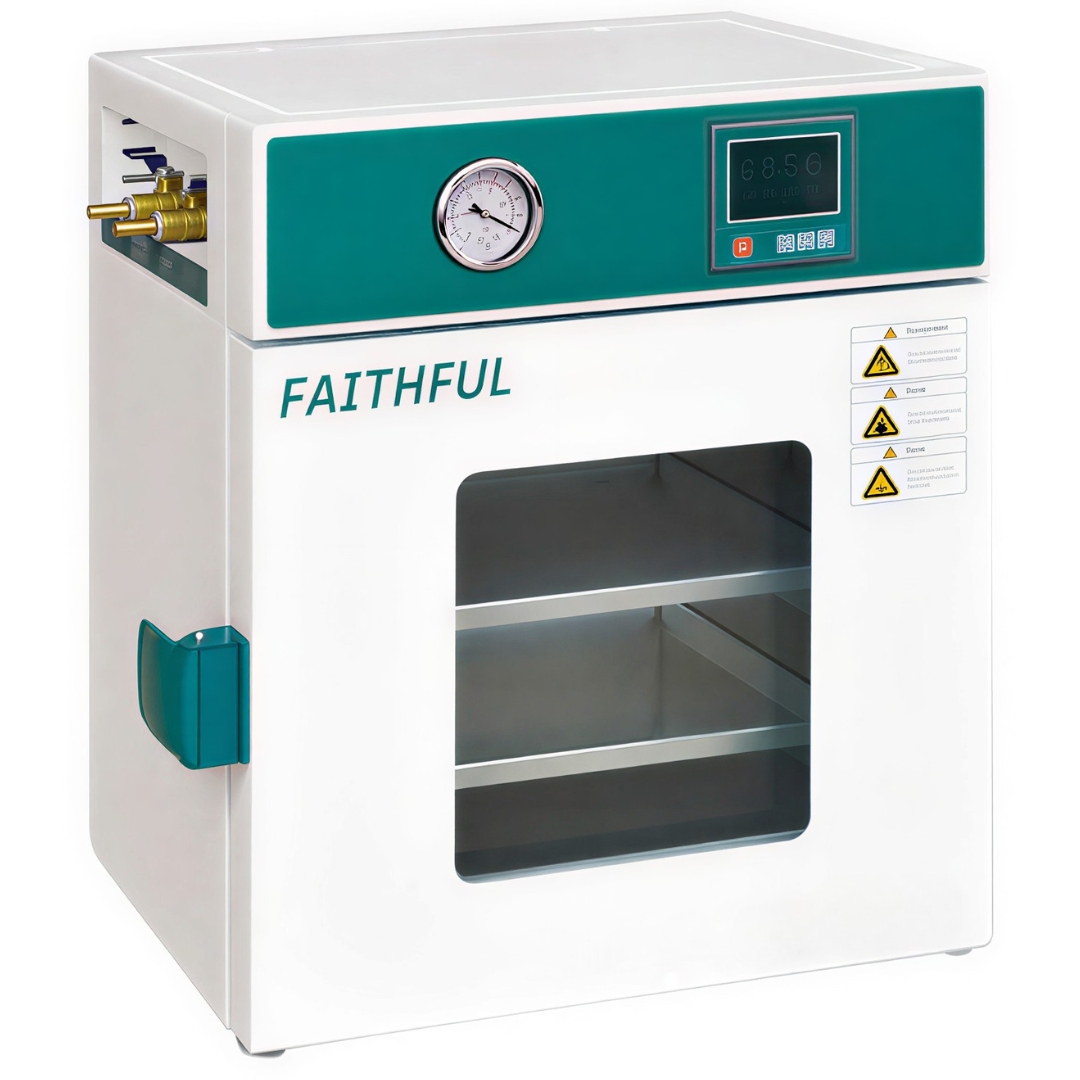

The Faithful DZ-1BC II Vacuum Drying Oven is designed for the drying of heat-sensitive, easily oxidized, or decomposable materials under vacuum conditions. It uses four-side heating for efficient temperature conduction via shelves and ensures uniform drying.
Key features include a double-layer observation window with toughened glass and resin protection for safety, an inflatable port with silica gel sealant strip for excellent vacuum tightness, and a convenient fastening handle for easy operation.
Technical Specifications:
- Temperature Range: RT+10–250°C
- Vacuum Degree: <133 Pa
- Temperature Resolution: 0.1°C
- Temperature Accuracy: ±1°C
- Heating-Up Time: 80 min
- Inner Chamber: Stainless Steel, 300×300×270 mm, 24L volume
- Shelves: 2, Load per Shelf 15kg
- Power: 0.8 kW, AC220V/3.6A
- Temperature Control: Two-section PID intelligent, touch button setting
- Timer: 0–9999 min, auto-stop, fixed temperature operation
- Sensor: PT100
- Safety: Over-temperature sound-light alarm
Optional Accessories: Silicone connecting tube, vacuum pump filter, vacuum pump.
