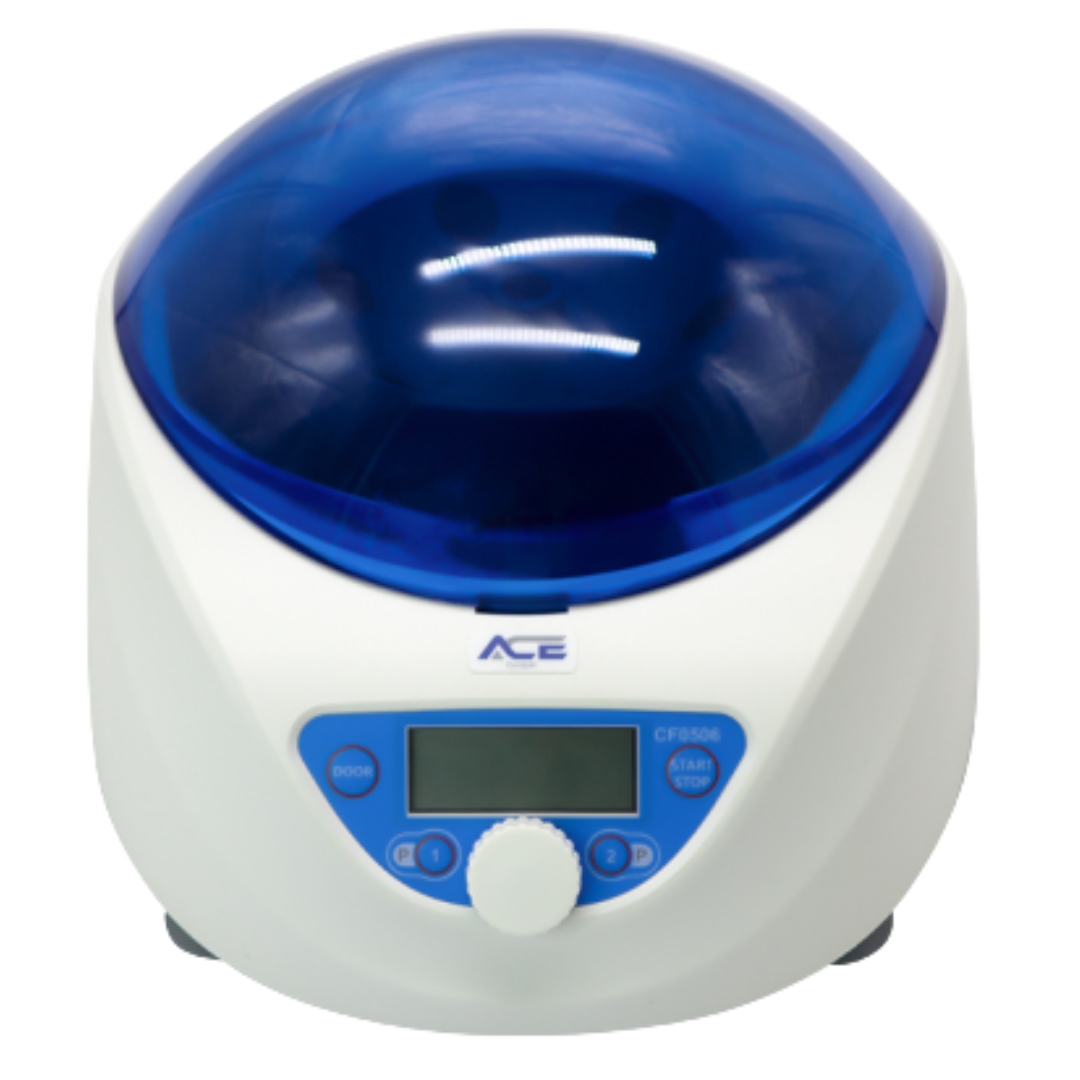

The CF0506 Low-Speed Centrifuge from ACE GmbH is a versatile benchtop centrifuge designed for routine sample separation in clinical, research, and industrial laboratories. With a variable speed range of 300–5000 rpm and a maximum RCF of 2350 × g, it delivers stable and reliable performance for a wide range of tube volumes including 1.5 / 2 / 5 / 7 / 15 mL (×6 positions).
The system allows users to switch between RPM and RCF display modes, store predefined programs, and quickly start procedures with one-touch operation. It includes dual deceleration settings, automatic lid-lock release, sound alerts, and an easy-to-read LCD display. The CF0506 operates with a maintenance-free brushless DC motor, ensuring durability and long-term performance.
Specifications:
-
Model: CF0506
-
Type: Low-Speed Centrifuge
-
Rotor Capacity: 6 × 15 mL / 10 mL / 7 mL / 1.5–5 mL
-
Supported Tubes: 1.5 / 2 / 5 / 7 / 15 mL × 6
-
Speed Range: 300–5000 rpm (10 rpm increments)
-
Max. RCF: 2350 × g (10 g increments)
-
Speed Accuracy: ±20 rpm
-
Run Time: 30 sec – 99 min, HD (continuous operation)
-
Programs: 2 programs (P1/P2)
-
Acceleration/Deceleration: 1↑ / 2↓
-
Display: LCD
-
Safety Features:
-
Door interlock
-
Overspeed protection
-
Automatic internal diagnosis
-
-
Motor Type: Brushless DC motor (maintenance-free)
-
Power Requirements: Single-phase 100–240V, 50/60Hz, 70W
-
Dimensions: 300 × 240 × 180 mm (W×D×H)
-
Weight: 5.2 kg
-
Advanced Features:
-
Speed/RCF switching
-
Sound alert
-
Automatic lid-lock release
-
-
Optional Adapter: A5P17 – 5 mL adapter for 13×75 mm blood collection tubes
