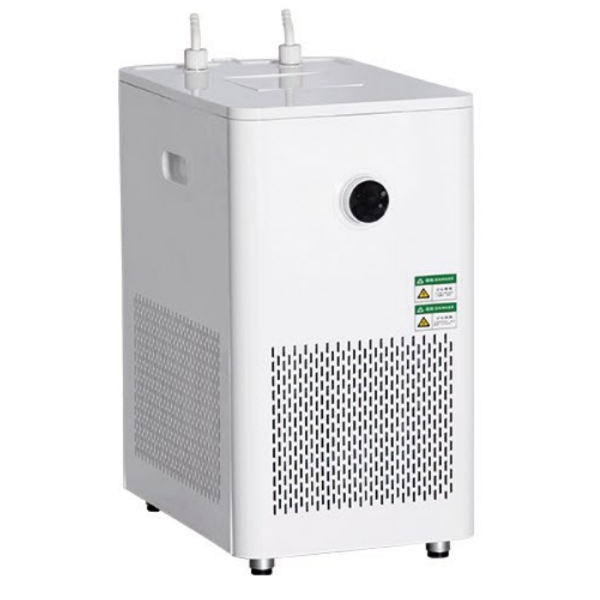

The Mini Cool Recirculating Chiller (-20°C) is a compact and efficient cooling system designed for laboratory applications requiring continuous and stable low-temperature circulation. It is ideal for use with small rotary evaporators, analytical instruments, and other laboratory cooling equipment.
This unit operates using a high-performance compressor-based refrigeration cycle. The refrigerant absorbs heat through the evaporator, is compressed to increase temperature and pressure, and then dissipates heat via an air-cooled condenser before recirculating. The integrated water pump continuously circulates coolant from the reservoir to connected equipment, ensuring efficient heat removal and consistent cooling performance.
Equipped with a SECOP imported compressor and R290 environmentally friendly refrigerant, the system provides reliable and energy-efficient operation. The temperature range extends from -20°C to room temperature (RT), making it suitable for a wide range of laboratory processes.
The Mini Cool Chiller includes multiple safety protections such as compressor delayed start, thermal overload protection, and overcurrent protection to ensure long-term durability and safe operation. The 1.28-inch IPS round knob display offers intuitive control, while the compact design allows easy integration into limited lab spaces.
The unit features a 360° rotatable 10mm pagoda nozzle, enabling flexible and convenient connection to external equipment. With low noise operation (<55 dB), it is suitable for quiet laboratory environments.
Key Features:
- Temperature range: -20°C to room temperature (RT)
- SECOP imported compressor for reliable performance
- R290 eco-friendly refrigerant
- Efficient air-cooled refrigeration system
- Built-in circulation pump (16 L/min flow, 16 m lift)
- Compact design with <5L reservoir capacity
- 360° rotatable 10mm pagoda head connection
- 1.28-inch IPS knob control display
- Low noise operation (<55 dB)
- Multiple safety protections (overload, overcurrent, delayed start)
- Ideal for rotary evaporators and laboratory cooling systems
