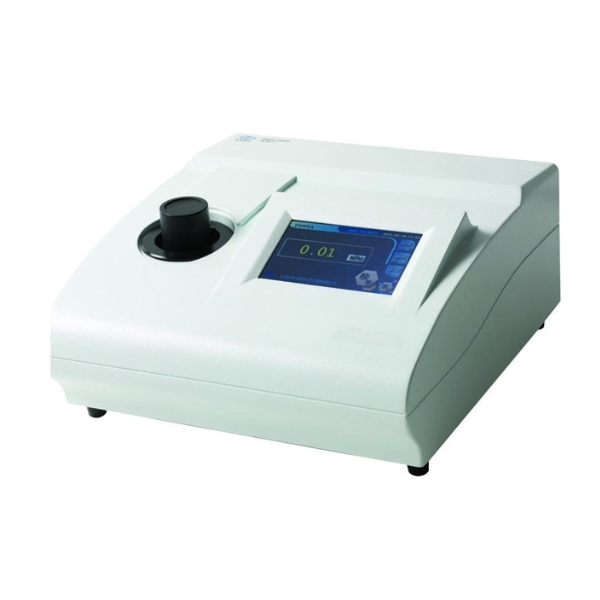

The WGZ-200 Turbidimeter is a high-precision laboratory instrument designed for measurement of light scattering and decay caused by insoluble particles suspended in water or transparent liquids. It is widely used for quantitative analysis of particle concentration in water quality testing and laboratory applications.
This model features a modern touch screen LCD display with user-friendly operation and built-in computer software support via RS-232 and USB connectivity for data transfer and analysis.
It operates using a tungsten halogen lamp light source and a silicon photocell receiver to ensure stable and accurate readings. The device automatically switches measurement ranges between 0.00–50.0 NTU and 50.1–200 NTU for optimal accuracy.
The WGZ-200 offers reliable performance with low drift, good repeatability, and stable indication, making it suitable for routine turbidity testing in laboratories, research facilities, and industrial water analysis.
Its compact design includes a standard sample bottle system and requires only a small sample volume for measurement, ensuring convenient and efficient operation.
Specifications
- Light Source: Tungsten halogen lamp (6V, 10W)
• Detector: Silicon photocell
• Measurement Range: 0.00–50.0 NTU; 50.1–200 NTU (auto range)
• Display: LCD Touch Screen
• Error: ≤ ±8%
• Zero Drift: ≤ ±0.3% FS
• Stability: ≤ ±1% FS
• Repeatability: ≤ 2%
• Sample Bottle: Ø25 mm × 95 mm
• Sample Volume: 20–30 ml
• Interface: RS-232 / USB (software support)
• Weight: 8 kg
• Dimensions: 358 × 323 × 160 mm
• Fuse: RF1-20 1A 250V
