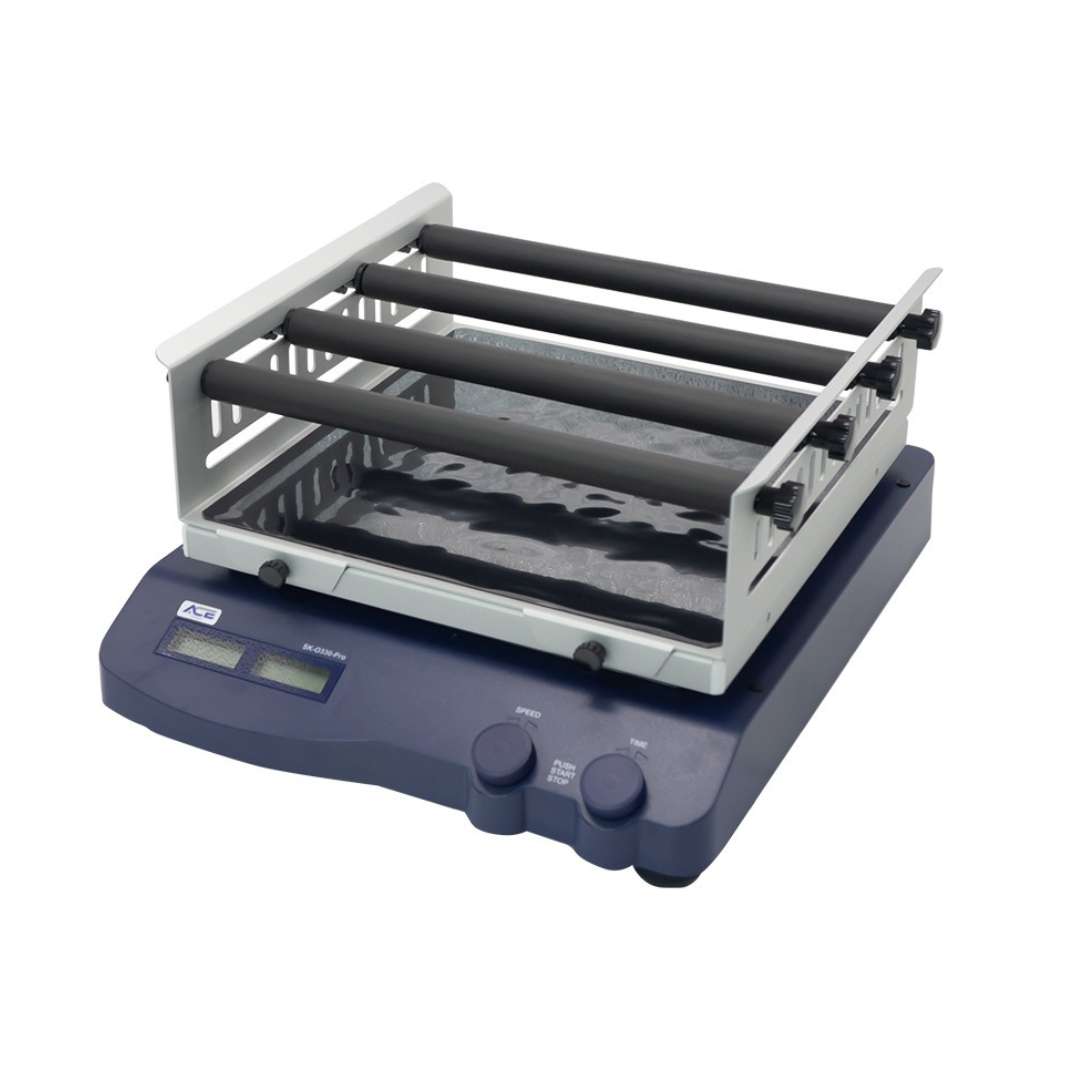

The ACE GmbH SK-O330-Pro LCD Digital Orbital Shaker is a high-capacity, precision laboratory shaker designed for advanced mixing applications requiring stability, accuracy, and continuous performance. It is widely used in microbiology, cell culture, biochemical analysis, and general laboratory research.
This model is equipped with a maintenance-free brushless DC motor that ensures smooth, low-noise, and long-life operation. The dual LCD display provides independent real-time monitoring of speed and time parameters for precise control during experiments. Its over-speed detection and protection system enhances operational safety.
The SK-O330-Pro supports a large platform with a high load capacity of up to 7.5 kg, making it suitable for heavy or multiple sample containers. It also features remote PC control and data transmission, enabling integration into modern laboratory workflows for advanced monitoring and automation.
Features
- Dual LCD display for independent speed and time control
- High load capacity up to 7.5 kg (with platform)
- Maintenance-free brushless DC motor
- Over-speed detection and safety protection
- Remote PC control and data transmission
- Compatible with a wide range of accessories
- Stable and low-noise orbital motion
Specifications
| Parameter | Details |
| Model | SK-O330-Pro |
| Orbital Diameter | 20 mm |
| Max Load Capacity (with platform) | 7.5 kg |
| Motor Type | Brushless DC motor |
| Motor Input Power | 28 W |
| Motor Output Power | 15 W |
| Speed Range | 100–500 rpm |
| Display Mode | Dual LCD |
| Timer Display | LCD |
| Time Range | 1 min – 19 h 59 min |
| Voltage | 100–240V, 50/60Hz |
| Power | 30 W |
| Weight | 13.5 kg |
| Protection Class | IP21 |
| Data Connector | RS232 |
| Operating Conditions | 5–40°C, ≤80% RH |
| Dimensions (W×D×H) | 370 × 420 × 100 mm |
Applications
- Cell culture and microbiological studies
- Biochemical and clinical sample mixing
- Solubility and reaction studies
- Staining and destaining procedures
- General laboratory mixing tasks
