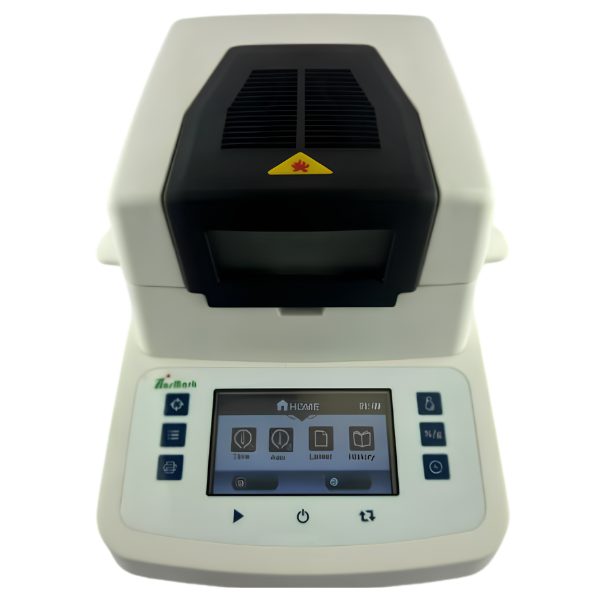

The Titanium Series Moisture Analyzer MA 110-3H-T is a high-precision halogen moisture balance designed for rapid and accurate moisture determination across a wide range of laboratory and industrial applications. Equipped with a high-accuracy German load cell and an efficient halogen lamp heating system, this moisture analyzer delivers reliable and repeatable results with excellent performance.
The analyzer features a modern 5-inch touch screen interface for easy operation and supports multiple drying modes including Rapid, Standard, and Gentle modes to meet different sample testing requirements. It supports automatic drying, timed drying, and manual drying functions, making it suitable for various material types and moisture testing procedures.
This series is widely used in tobacco, paper manufacturing, food processing, tea, beverages, grains, pharmaceuticals, chemical raw materials, and textile industries for precise moisture content analysis.
Features
- High precision German load cell for accurate weighing
- Efficient halogen lamp heating system
- 5-inch touch screen display for easy operation
- Four language support: English, German, Spanish, and Chinese
- Rapid, Standard, and Gentle drying modes
- Auto drying, timed drying, and manual drying functions
- Displays moisture analysis graph
- RS232 interface for printer and PC connectivity
- Optional USB connectivity
- Temperature calibration function
- Moisture range from 0.00% to 100.00%
- Capable of testing sample weights as low as 0.5g
- Compact and durable design
Applications
- Food industry
- Pharmaceutical raw materials
- Tobacco industry
- Grain and agriculture testing
- Chemical raw materials
- Beverage industry
- Textile and paper industries
Specifications
| Parameter | Specification |
| Model | MA 110-3H-T |
| Capacity | 110 g |
| Resolution | 0.001 g |
| Repeatability | ± 0.002 g |
| Linearity Error | ± 0.002 g |
| Operating Temperature | 5 °C to 40 °C |
| Pan Size | 90 mm |
| Heat Source | Halogen Lamp |
| Temperature Range | 50 °C to 200 °C |
| Moisture Range | 0.00% – 100.00% |
| Time Setting | 0 – 99 minutes |
| Time Interval | 1 minute |
| Number of Storage Groups | 6 groups |
| Display | 5-inch Touch Screen |
| Calibration | External Calibration |
| Body Dimensions | 370 × 215 × 195 mm |
| Packing Size | 445 × 300 × 330 mm |
| Power Supply | 110V – 240V |
| Net / Gross Weight | 3 kg / 4.5 kg |
| Connectivity | RS232 Interface, Optional USB |
